Building Material Shops' Best Choice Rotary Brush Fine Screen

Condition : New

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops

Showroom Location : Viet Nam, Indonesia, Russia, Thailand, Argentina, Bangladesh

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Gearbox, Bearing, Motor

Place of Origin : Sichuan, China

Brand Name : TOP

Material : Film packing on pallet, SS304/316

Weight : Depends on capacity

Size : Depends on capacity

Warranty : 1 Year

Productivity : 50~1000m3/h

Weight (KG) : 10000 kg

Product name : Fine screen

Application : Solid separation

Other name : Inclined Screen

Construction : Channel/drain

MOQ : 1 Unit

Operation : Automatic, 24hrs

Micron Rate : 50mm above

Control : Electric Auto Control (PLC Siemens)

Cleaning : By brush

Packaging Details : Standard export packing (or as per your requirement)

Port : shanghai

Supply Ability : 30 Set/Sets per Month

Price : $2,500.00/sets >=1 sets

MOQ : 1pc

Contact Now

Product Description

TPMBS Rotary brush screen filter is a typical fine screen filter cleaning machine, which is suitable for fine filtration in urban sewage, waterworks, power plants, textile, leather, pharmacy, food, paper making and other industries. The device has reasonable structure and can effectively remove fine suspended organisms and impurities in water. The smallest slot size can be 0.02mm.

The equipment is mainly composed of frame, main shaft, transmission mechanism, wedge wire screen, slag cleaning brush, traction chain, etc.

Working principle

Driven by motor, the chain wheel and the chain move under the deceleration of reducer, and the slag cleaning brush fixed on the chain sweeps the dirt on the surface of the filter screen from the bottom to top by the traction of the chain, and then unloads the slag through discharge opening, small amount of dirt attached to the brush is removed by the screw, that’s a complete running process. The dirt in the water is intercepted when the liquid passes through the screen, and the liquid flows through the slots of the screen and the entire running process continuously circulate.

Building Material Shops' Best Choice Rotary Brush Fine Screen

Advantages

1. This equipment has the characteristics of reliable filtration, high separation efficiency, smooth water flow, stable operation, low noise, low energy consumption, small space occupation, long service life, convenient installation and maintenance, and full automatic

2. Interception of SS efficiency up to 100%, no leakage

3. Simple structure, compact and easy to maintain

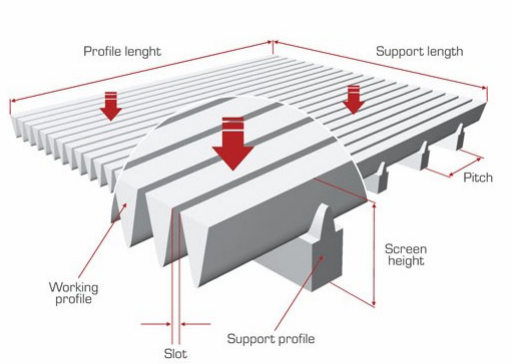

4. Top quality V-SLOT wedge wire filter, high precision, extremely smooth surface, easy to scrape, high strength, long life, easy to replace

5.V-SLOT wedge filter has a high slot opening rate

6. Plate brush easy to clean

Buying Guides

No.	Item	UN	Design Parameter
1	Width	mm	Customizable
2	Water level difference	m	2
3	Installation angle		80°(standard), 45°, 75°, 90°(non-standard)
4	Slot size	mm	≥0.02
5	Rotary brush speed	r/min	~10rpm

Parameters and images are for reference only and the company reserves the right to continuous improvement.

For orders, please specify: slot size, flow rate, material, control type (time control / level control), installation angle.
